The Brooks 180 T565 Stairlift

From £4995 with 12 months warranty

The Brooks curved stairlift is a purpose built stairlift for staircases that feature any type of bend, corner or curve to reach upstairs. It’s one of the slimmest curved stairlifts on the market so is perfect for narrow staircases – it can be installed on stairs as narrow as 27″.

Designed from the ground up for any curved staircase. This curved stairlift offers a comfortable and reliable ride. The advanced self-levelling carriage moves along the modular rail system, coming to a soft stop with ease.

There is no waiting weeks to have an expensive rail made for your home. Utilising the FastTrack® system, it can be installed in a matter of days with no mess and no fuss.

Options

Powered options are available for the Brooks curved stairlift, making this stairlift even easier to use for most users.

	A safety belt is fitted to all easystep stairlifts so you feel secure at all times.		Safety sensors on the footrest and carriage stop the stairlift automatically if any obstruction is detected.
	Directional paddle gives you complete control.		A easy to use paddle to help you to release the seat to turn at the top.
	A simple digital display allows you to see the exact status of your stairlift at all times.		Two remote controls to call and send for multi users.
	A lockable on/off key switch is fitted as standard.		Auto folding hinge for doorways.

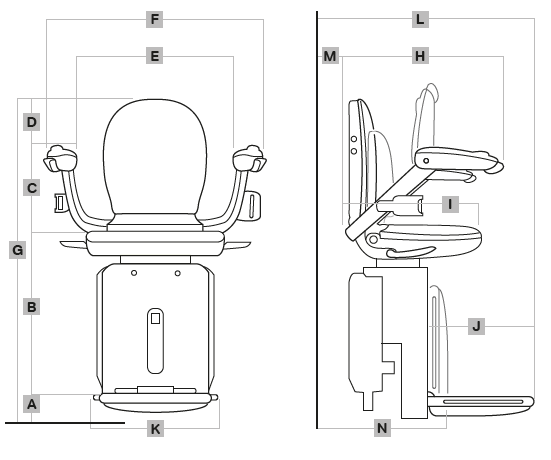

A	Floor to top of footrest	50
B	Top of footrest to top of seat	485
C	Top of seat to top of arms	245
D	Top of arms to top of seat back	195
E	Width between armrest	480
F	Overall width	620
G	Overall height	975
H	Length of arms from seat back	460
I	Length of seat base from seat back	435
J	Length of footrest	360
K	Width of footrest	375
L	Front of footrest to stringer	640
M	Back of seat to stringer	35
N	Folded depth	335

S bend
Power hinge
Internal wrap
External double bend
Hinge folded up
Top over run
Ready to go
Close to the wall
Stops after first flight
Internal
